CSL CS776 RFID Antenna Specifications

Category: RFID, PAWN

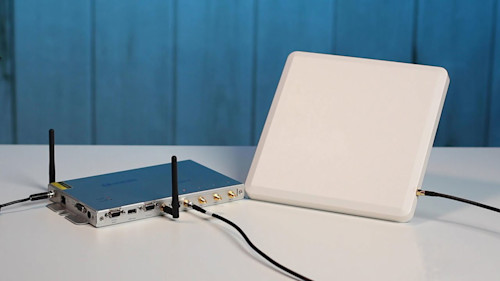

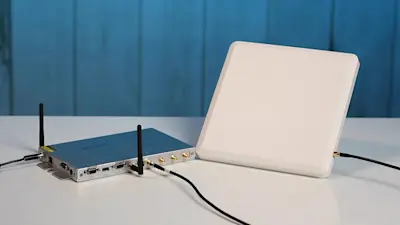

CSL CS776 RFID Antenna

Main Features

  • Compatible with CS463 Fixed UHF RFID Reader
  • Excellent Circular Polarization for reading tags in every orientation
  • Beamwidth of 70 degrees
  • Global frequency range compatibility (860-960 MHz)
  • Read Range up to 22 meters outdoors
  • SMA Waterproof Connector

Dimensions

  • Length: 250 mm (9.84 in)
  • Width: 250 mm (9.84 in)
  • Height: 20 mm (0.79 in)
  • Weight: 690 g (1.52 lbs)

Operating Environment

  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 10% to 95% Non-condensing
  • UV Resistant ASA Radome
  • Lightning protected
  • ESD protection: 10 KV (no ESD sensitive components inside)
  • Environmental Rating: IP67

100MM VESA studs make mounting simple using any compatible VESA bracket.
