CSL CS108D Charging Dock Specifications (CS108D)

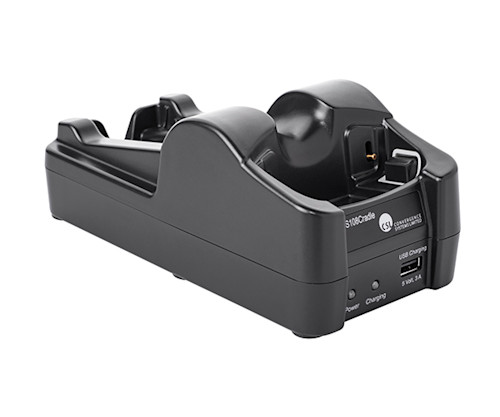

CS108D Charging Cradle

Main Features

  • Can fully charge a CS108 Handheld Reader in less than four hours
  • Place CS108 handheld in cradle and push down to start charging
  • USB Type-A charging port (5V, 3A) for charging smartphone simultaneously
  • Includes 12VDC power adaptor


  • Length: 188 mm (7.40 in)
  • Width: 95 mm (3.74 in)
  • Height: 76 mm (2.99 in)

Operating Environment

  • AC Input Voltage: 100-240 V, 50/60 Hz
  • Maximum AC input current: 2.0 A
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 20% to 85% RH non-condensing
  • Uses natural convection cooling
